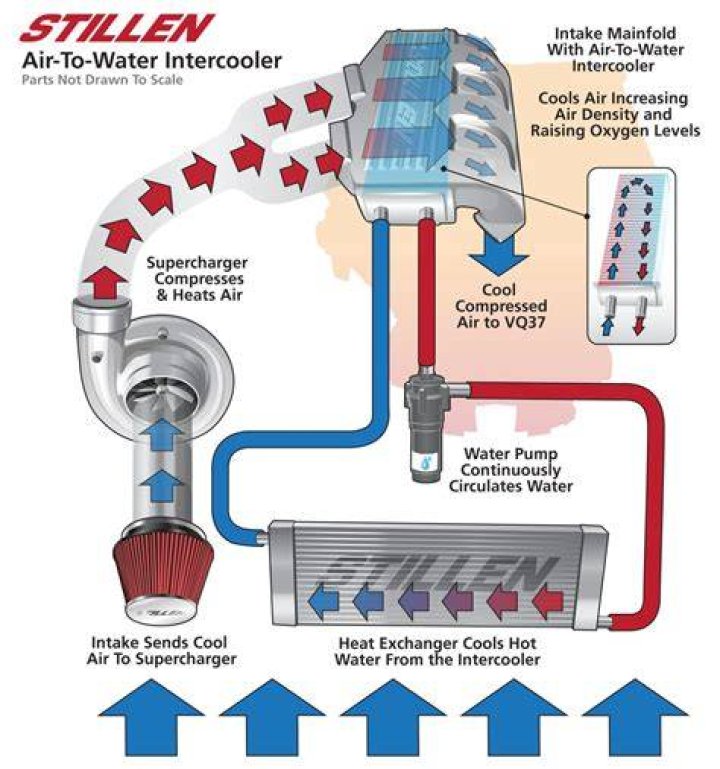

At its essence, an intercooler is a heat exchanger. In an air-to-water intercooler, the heat exchange occurs between the air coming in and the water flowing through the intercooler–the heat from your charge pipes is transferred to the water, and cooler and denser air is sent through the other side.

Are air to water intercoolers good?

AIR-TO-WATER INTERCOOLER ADVOCATE:

Air-to-water intercooler systems can be more expensive than air-to-air systems, but they're also more effective. Water has roughly 13 times the heat dissipating capacity of air.

Which type of intercooler is better?

Overall, the air-to-air intercooler is the most popular intercooler style and provides the best bang-for-buck.

Do intercoolers increase horsepower?

It also makes the compressed air denser as it enters the intake manifold, which causes a richer air-to-fuel mix in the engine's cylinders. The result is increased power output. So, the answer to the question is yes! An intercooler does help to increase horsepower.

What's better air to air intercooler or water to air?

The present study found that the air to water intercooler is more efficient and the heat transfer is much better than that of the air to air intercooler. This is due to the air flow to the water inside the intercooler is better compared to the system that uses an air to air intercooler system.

Intercoolers : Air to Water vs Air to Air for a Street Car

How do air to air intercoolers work?

As the term suggests, an air-to-air intercooler uses the cooling effect of ambient air flowing through the core of the unit to carry away heat, in exactly the same way that radiators use air flowing through the radiator core to shed heat from hot engine coolant.

How are intercoolers rated?

Intercoolers are rated by "Effectiveness" and flow restriction. If an intercooler can take compressed air at 270 degrees, and drop it down to the cooling air temp outside the intercooler of 70 degrees (a 200 degree drop), it is 100 % Effective. ... Intercoolers have mass and are typically made from aluminum.

Can you run a turbo without an intercooler?

Running a turbo without an intercooler will cause hot air to enter the combustion chamber and prematurely detonate. ... Running a turbo without an intercooler will cause extremely hot air to enter the engine – because there's no intercooler that cools them down before entering the engine.

Do you need a tune for an intercooler?

Nope. Upgrading the intercooler doesn't require a tune.

Do intercoolers have coolant?

Liquid to air intercooler

Cool air enters turbocharger intake. Turbocharger compresses and heats air. Heated air is sent to the intercooler which cools it down before it is sent to the engine. At the same time, coolant is also circulating through the intercooler.

Should I put a fan on my intercooler?

If you run a shrouded fan on the front of the IC, the shroud will reduce airflow to the IC at speed. If you run a un-shrouded fan, you lose a lot of airflow through the fan. If you have a half-size rad, run a fan on it and a fan on the back of the IC where there is no rad behind.

Does Mishimoto make good intercoolers?

After noticing the lack of Mishimoto intercooler reviews online, we wanted to share our experience with their products. In our opinion, they are as good as any other brand on the market. The Z-Line, J-Line, and R-Line are the most popular of their FMIC's.

What is the difference between air-to-air and air-to-water heat pumps?

Air-to-air heat pumps, commonly known as air conditioning, provide space heating by blowing warm air into your home. Air-to-water heat pumps heat radiators, underfloor heating and hot water in wet central heating systems.

How do supercharger intercoolers work?

The intercooler's job is to cool the compressed, heated air charge before it enters the engine's combustion chamber. This cooled air charge increases the engine's horsepower. ... Found between the supercharger and the engine's intake manifold. A leak in the intercooler can result in white-colored exhaust.

How much HP can an intercooler add?

The usual rule of thumb is to allow 6 to 7 square inches of internal intercooler flow area for every 100 hp of engine output, but this can increase by up to 40 percent with really dense internal fins.

Do turbo diesels need intercoolers?

A Turbo Diesel Intercooler is an integral part of your engine- there to make an impact in the most efficient way possible! An intercooler is a special piece, usually placed on Turbocharged or Supercharged engines. ... A highly-functioning intercooler begins with the question, “What is air density?”.

Do all turbos have intercoolers?

All turbo cars have an intercooler (gas), but typical performance mods for them include a front mount intercooler (that shiny radiator you see) which allows for higher flow, and higher temperature drop, allowing for higher boost pressures......

What's better bar and plate or tube and fin intercooler?

True, the bar-and-plate design is a bit heavier than tube and fin, but this is actually advantageous. "The core acts as a heat sink. Its ability to soak up more heat is especially useful in stop-and-go traffic. It keeps the charge relatively cool, then is able to dissipate the heat once the vehicle is in motion.

What is water air intercooler?

A Water to Air Intercooler is one where the exchange of heat occurs between water and air. Water is pumped through the intercooler so that the heat from your charge pipes is transferred to the water. This type of set-up can be mounted anywhere, and just needs to have water plumbed to it.

Is a radiator the same as intercooler?

Radiators are used in supercharged or turbocharged engines to provide maximum engine power. An intercooler is primarily needed in cars that have to produce high speed and acceleration.

What fluid goes into an intercooler?

An Air-to-Water intercooler uses water as a heat transfer agent. In this setup, cool water is pumped through the air/water intercooler, extracting heat from the compressed air as it passes through. The heated water is then pumped through another cooling circuit (usually a dedicated radiator).

What happens if intercooler fails?

If the intercooler fails, the engine won't receive enough cool, dense air resulting in loss for complete combustion and exhaustion of unburned fuel. Not replacing the intercooler can directly affect horsepower, fuel mileage and emissions.

How does oil get in my intercooler?

Oil might get accumulated in the intercooler as your car covers more distance, but this is not a frequent occurrence. And most times, it is due to a leak from your car's turbo oil seals, which causes a restriction.
